Product Introduction

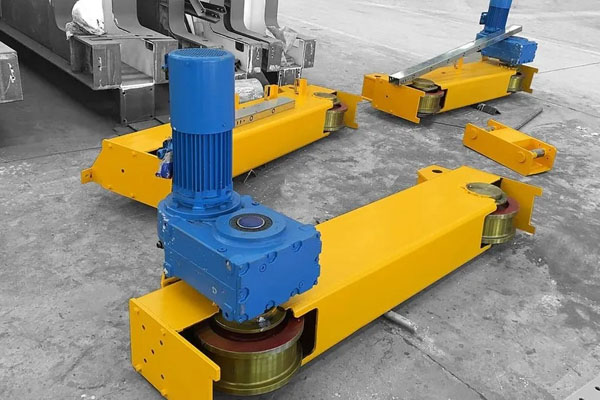

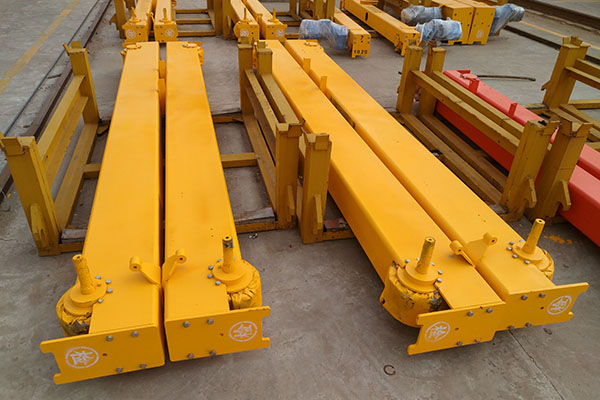

The end carriage is an important part in the operations of the crane, and it is a key component to realize the crane traveling. The end carriage is composed by the drive wheels, driven wheels, traveling motors and steel structures. Reinforcing ribs are included inside of the end carriage to ensure the stability after being loaded. The main size of the end carriage is determined according to the lifting capacity, span length, crane wheelbase and the trolley gauge.

Steel structural

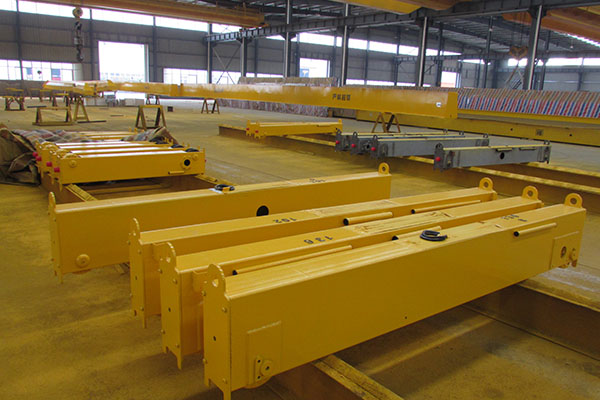

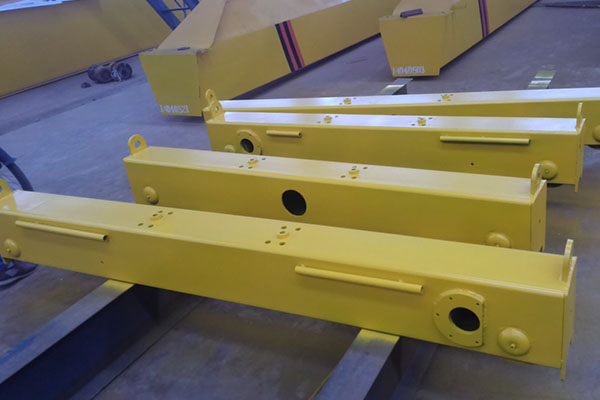

End carriage is made of rectangular tube, completely opened, bored, milled and drilled with CNC boring milling machine. The processing is precise and the he low ally steel structure provides high strength and malleability.

Traveling motor

European Germany ABM/SEW/Siemens etc brand or China domestic Nanjing/Jiamusi/Hongda etc brand

Wheel

ZG340-640 cast steel or the ZG-50SiMn low alley steel

Connections

By welding or high strength bolts connection

Product Advantages

  • Simple structure, modular design, convenient installation and maintenance
  • High precision, low noise, stable operation, low failure rate
  • There are many ways to connect to the main beam, adapting to the configuration requirements of different plants

Technical Data

Capacityt51016203250
Wheel Dia. 500500/600600/700600/700700/800800
Spanm10.5-31.5
Lifting heightm6.0-30.0
Working class A3-A7
Working speedm/min20-80
material  Q235B or Q345B

Safety Protection

Lifting limit switch
Prevent the hook out of control when it has been lifted to the top position
Traveling limit switch
Stop the crane traveling smoothly when travel to the rail ends
Overload limiter
Prevent for the overload
Wire rope guide
Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

FAQ

  • Q1:What object to lift ? applications and working environment ?
  • Q2:Lifting capacity:__ton?
  • Q3:Lifting height (H):__ m ?
  • Q4:Span (S):__m ?
  • Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
  • Q6:Control mode: pendant control, remote control or cabin control ?
  • Q7:Power source: AC 3Phase __V / __Hz ?
