Product Introduction

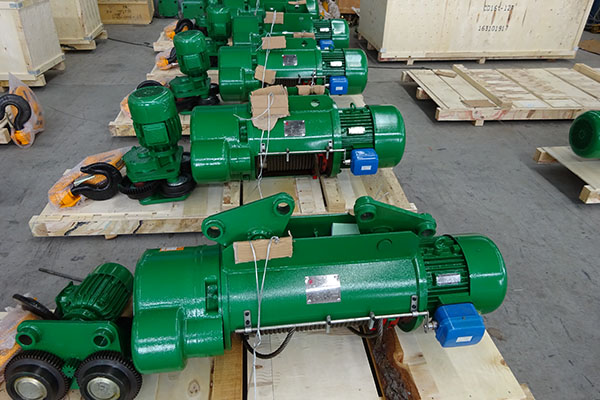

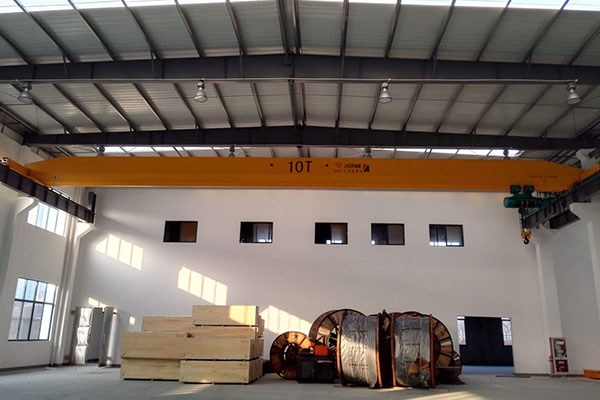

Single Girder Overhead Crane is the most common type of overhead cranes used for small to moderate lifting applications. It is extensively applied in workshops of manufacturing, repairing and assembly lines, warehouses and storage yards to carry out different lifting tasks. This typical single beam overhead crane cannot be used in flammable, explosive or corrosive environments. This type crane is capable of lifting a large amount of weight, ranging from 1 ton to 20 ton. It is generally equipped with CD or MD electric hoist. According to specific requirements of clients, the LD type single girder crane can also be custom designed and fabricated.

Product Advantages

  • Reasonable structure and strong rigidity. The overhead bridge crane design is in strict compliance with international standard JB/T 1306-2008.
  • A cost-effective solution. The overhead crane will make the most of building structure to be installed up high to the building roof, thus saving much floor space as well as construction costs for users.
  • Wide application. The single girder overhead crane is adaptable to a large variety of lifting occasions.
  • High efficiency and productivity. By employing this crane, it will bring the efficiency and production to a new level.
  • Excellent safety. Overhead crane is a much safer way to handle materials than other lifting equipment.

Safety Protection

Lifting limit switch
Prevent the hook out of control when it has been lifted to the top position
Traveling limit switch
Stop the crane traveling smoothly when travel to the rail ends
Overload limiter
Prevent for the overload
Wire rope guide
Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

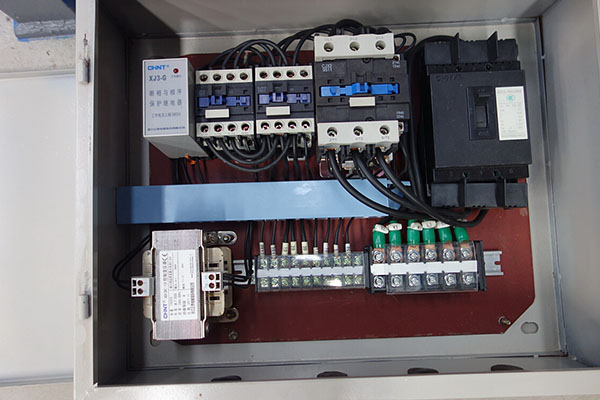

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

Technical Data

Lifting capacityt1235101620
SpanS(m)7.5~31.57.5~31.57.5~31.57.5~31.57.5~31.57.5~31.57.5~31.5
Lifting heightm6~186~186~186~186~186~186~18
Lifting speedm/min0.8/80.8/80.8/80.8/80.7/70.35/3.50.35/3.5
Trolley speedm/min20202020202020
Crane speedm/min20202020202020
Work duty A3-A4A3-A4A3-A4A3-A4A3-A4A3-A4A3-A4
Track type P24P24P24P24P24/P30P30/P38P38

FAQ

  • Q1:What object to lift ? applications and working environment ?
  • Q2:Lifting capacity:__ton?
  • Q3:Lifting height (H):__ m ?
  • Q4:Span (S):__m ?
  • Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?

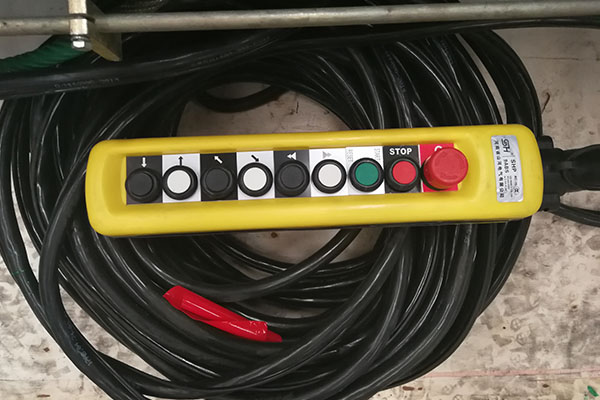

  • Q6:Control mode: pendant control, remote control or cabin control ?
  • Q7:Power source: AC 3Phase __V / __Hz ?

Get In Touch

Please feel free to leave a message. We will reply you in 24 hours.
