Product Introduction

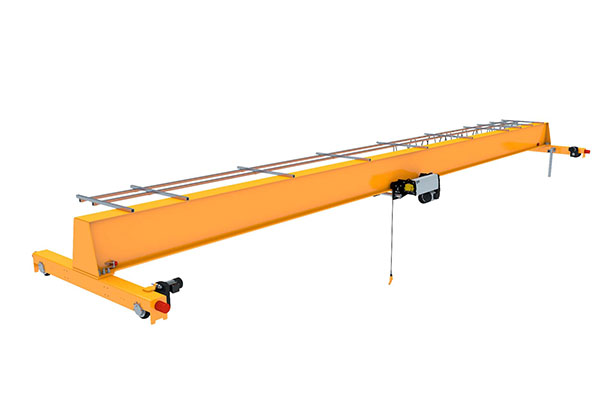

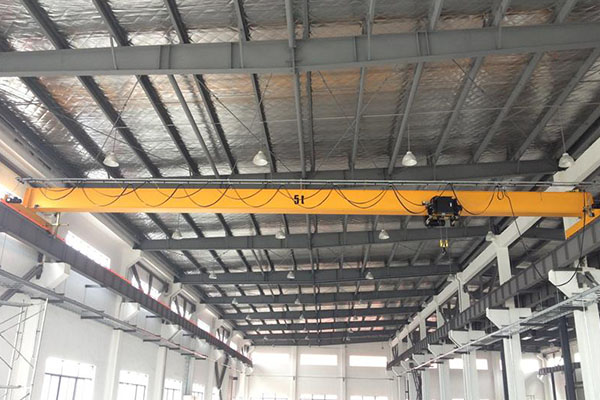

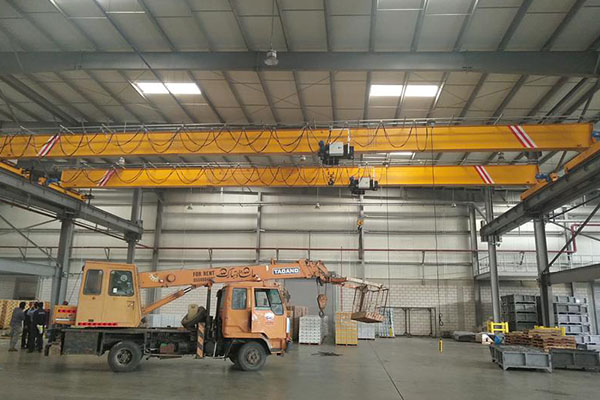

HD model European Single Girder Overhead Crane is equipped with high performance ABM or SEW brand engines, Schneider brand inverters and electrical components, variable speeds, box girder design, low headroom monorail hoist. Low noise, free maintenance, light weight, good-looking, most popular among new construction plant or workshops;

This type crane have features of European optimization design, light dead weight, small wheel load, and short size. Good driving capacity, double lifting speed, frequency control of trolley and crane, smooth and stable traveling and a variety of patterns meet customers' needs.

Product Advantages

  • Single main girder, welding box structure, camber meeting national standard.
  • Steel plate material Q235 or Q345B ( similar with foreign steel plate Fe3 or Fe52).
  • Main welds joint adopts union melt welding, nondestructive inspection. After welding, main girder is through shot blasting treatment, gets Sa2.5 class, and eliminate welding stress.
  • Reasonable layout, simple maintenance and insulation class IP55 for electric control box Flat cable, galvanized track and cable pulley for trolley traveling power supply, smooth traveling.
  • The trolley and crane adopt three-trinity driving mechanism, frequency stepless speed regulating, hard-tooth surface, disc brake.
  • Crane driving IP55, F class insulation, contact continuity reaches 40% ED. Epoxy zin-rich paint, a long service life, beautiful outlook and lustre.

Safety Protection

Lifting limit switch
Prevent the hook out of control when it has been lifted to the top position
Traveling limit switch
Stop the crane traveling smoothly when travel to the rail ends
Overload limiter
Prevent for the overload
Wire rope guide
Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

Technical Data

Lifting Capacityt3.25101620
SpanS(m)7.5~31.57.5~31.57.5~31.57.5~31.57.5~31.5
Lifting heightm6~306~306~306~306~30
Lifting speedm/min0.8/50.8/50.8/50.6/40.6/4
Trolley speedm/min2~202~202~202~202~20
Crane speedm/min3~303~303~303~303~30
Work duty A5A5A5A5A5
Track type P24P24P24/P30P30/P38P38/P43

FAQ

  • Q1:What object to lift ? applications and working environment ?
  • Q2:Lifting capacity:__ton?
  • Q3:Lifting height (H):__ m ?
  • Q4:Span (S):__m ?
  • Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
  • Q6:Control mode: pendant control, remote control or cabin control ?
  • Q7:Power source: AC 3Phase __V / __Hz ?
