Product Introduction

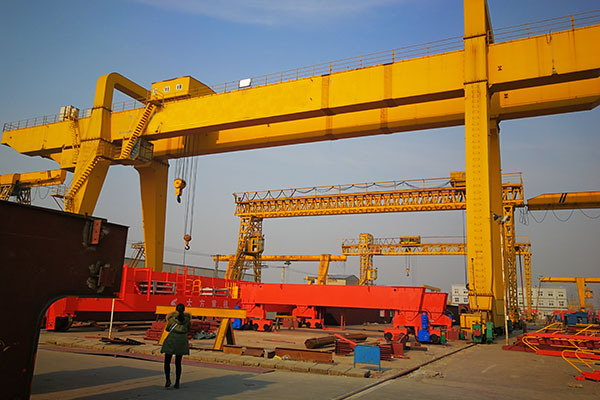

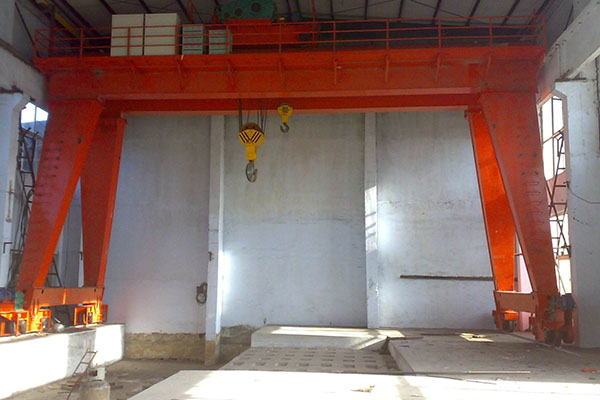

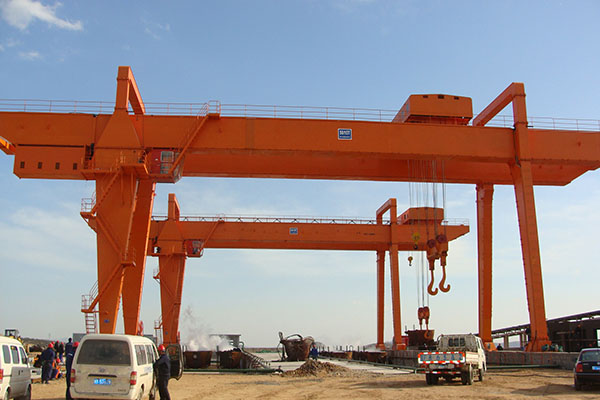

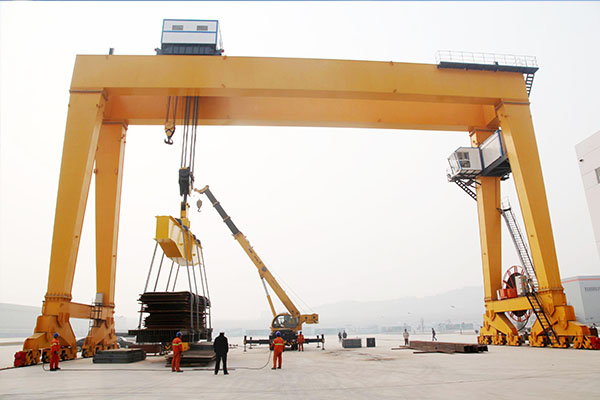

MG Model Double Girder Gantry Crane is the ground rail mounted gantry crane and widely used in the open yard for the material loading/unloading, this type gantry crane is box-shape structure, the track is at the side of each girder and the crane leg is divided into type A and type U according to user’s requirements.

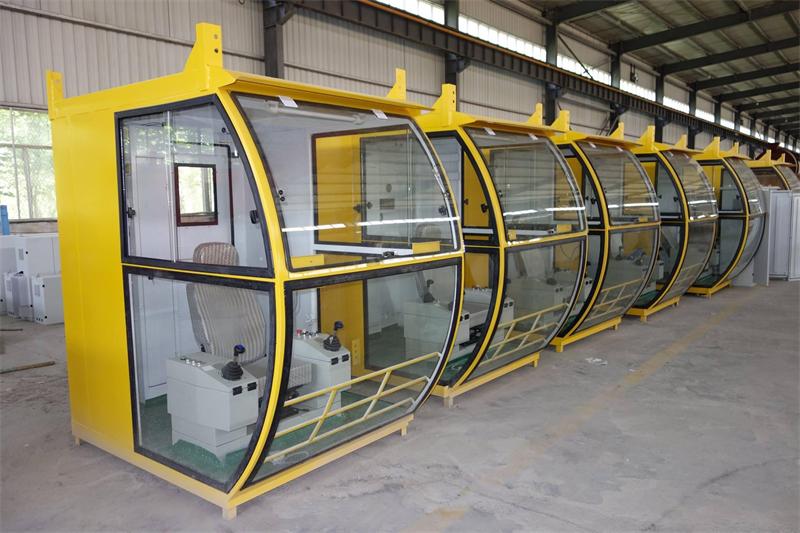

There are three kinds of control method, ground control-remote control, cabin control and both. In the cabin, there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan, air condition and some auxiliary equipment, such as acoustic alarm and interphone which can be furnished as required by customers.

Product Advantages

  • MG model Double Girder Gantry Crane is equipped with China top brand engines, traditional design, mature technology, fast delivery, easy maintenance, simple structure, economic cost make it the best seller among all cranes.
  • With delicate design, durable and widely used in open-air warehouse, of course, also can be used indoors. And if you can let us know the conditions in your workshop, just tell us your demands, we can design the most suitable crane for you.
  • Applicable to use grab bucket, container spreader, and other special lifting devices can be equipped to do special material handling work.
  • Heavy duty working condition, High efficient, with the work class high up to A5( Medium) and A6( Heavy), able to work more than 12 hours with heavy load capacity per day.

Safety Protection

Lifting limit switch
Prevent the hook out of control when it has been lifted to the top position
Traveling limit switch
Stop the crane traveling smoothly when travel to the rail ends
Overload limiter
Prevent for the overload
Wire rope guide
Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

Technical Data

Capacityt510162032
SpanS(m)18~3518~3518~3518~3518~35
Lifting heightm6~186~186~186~186~18
Lifting speedm/min12.58.57.97.27.5
Trolley speedm/min37.243.844.144.642.4
Crane speedm/min37.737.740.140.138
Work duty A5A5A5A5A5
Track type P43P43P43QU70P50 QU80
Capacityt5075100160200
SpanS(m)18~3518~3518~3518~3518~35
Lifting heightm6~186~186~186~186~18
Lifting speedm/min5.94.73.93.53.5
Trolley speedm/min38.538.233.922.52.9~29
Crane speedm/min4438.33.23~32.32.8~282.8~28
Work duty A5A5A5A5A5
Track type QU80QU80QU100QU100QU100

FAQ

  • Q1:What object to lift ? applications and working environment ?
  • Q2:Lifting capacity:__ton?
  • Q3:Lifting height (H):__ m ?
  • Q4:Span (S):__m ?
  • Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
  • Q6:Control mode: pendant control, remote control or cabin control ?
  • Q7:Power source: AC 3Phase __V / __Hz ?

Get In Touch

Please feel free to leave a message. We will reply you in 24 hours.

CUSTOM DESIGNED CRANES JUST FOR YOU.

We design cranes that meet your needs. Whether you need to increase safety, maximize production capacity or reliability, or reduce costs, we deliver.
