Product Introduction

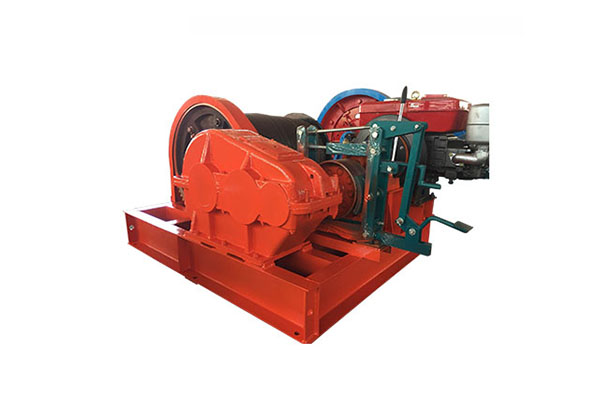

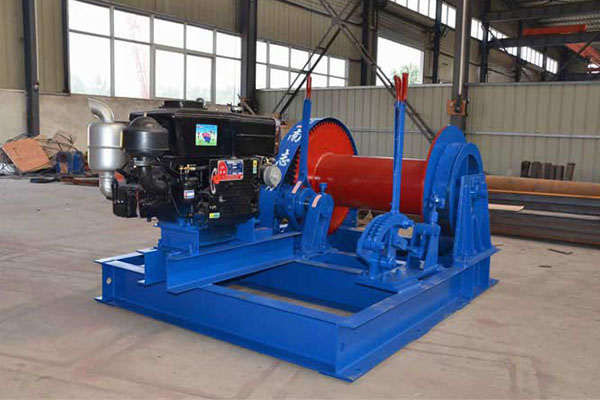

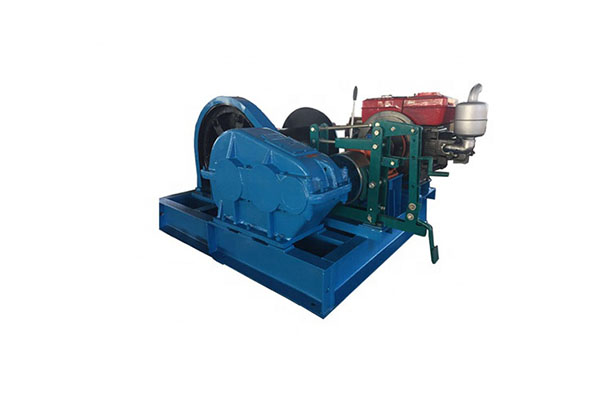

Diesel engine powered winch by human or mechanical power driven drum winding device of traction rope to complete the work. Can enhance the vertical, horizontal or inclined dragging weight.Mainly used for power transmission project(include underground power cable engineering),telecommunications, engineer construction tower erection, traction cable , wire tightening heavy lifting and tools ,especially suitable for small batch operations within the city.

Product Advantages

  • Ideal product for lifting and pulling work in remote area without the electric supply
  •  Not need the generator and electricity , power supplied by diesel engine directly
  • Diesel engine with large power, and use famous brand
  •  Hand brake with lock, can fix load in air long time
  •  With direction lever, can choose forward/backward/stop/reverse freely
  • Both forward and reverse with small pull capacity.

Safety Protection

Lifting limit switch
Prevent the hook out of control when it has been lifted to the top position
Traveling limit switch
Stop the crane traveling smoothly when travel to the rail ends
Overload limiter
Prevent for the overload
Wire rope guide
Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

FAQ

  • Q1:What object to lift ? applications and working environment ?
  • Q2:Lifting capacity:__ton?
  • Q3:Lifting height (H):__ m ?
  • Q4:Span (S):__m ?
  • Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
  • Q6:Control mode: pendant control, remote control or cabin control ?
  • Q7:Power source: AC 3Phase __V / __Hz ?
